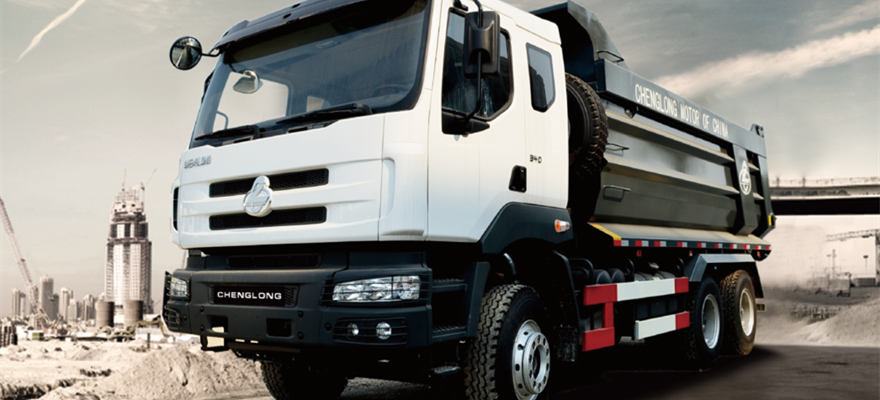

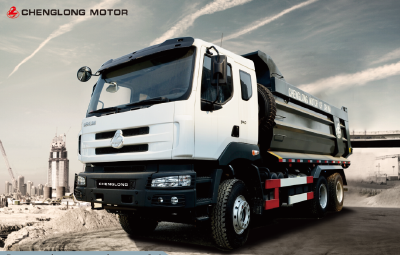

Dongfeng Chenglong 6X4 Dump Truck

Dongfeng Chenglong 6X4 Dump Truck

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: Qingdao, Shanghai, Tianjin or Wuhan, any port of China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1981-12-19
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  8200×2500×3200
  • Place of Origin:  Guangxi Province, China
  • Brand Name:  DONGFENG LIUZHOU MOTOR
  • Model Number:  LZ3252PDJ
  • Weight: 14300.000 kg

Company Introduction

As a limited liability company held by Dongfeng Motor Group Co., Ltd. and Liuzhou Industrial Shareholding Co., Ltd., Dongfeng Liuzhou Motor Co., Ltd. is a China’s first-grade big enterprise, ISO9001 quality system attestation enterprise and 3C attestation enterprise. With more than 3000 employees, total assets value of 2.38 billion yuan and land area of 878,000 m2, it has formed an annual production capacity of 60,000 commercial vehicles and 50,000 passenger vehicles, and has four major brands, i.e. “Dongfeng Chenglong”, “Dongfeng Balong”, “Dongfeng Longka”, and “Dongfeng Fengxing”.


1. Small order can be accepted.

2. 1 year quality guarantee term.

3. CCC, ISO9001 certifications.

4. Be designed according to your requirement.

5. More than four years dump truck manufacture experience.

6. We accept 100% inspection, and welcome to our factory at any time.


The Specification of Dongfeng  6X4 Dump Truck
Drive mode 6×4
Engine Model Cummins L375 20
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 275/2100
Max. torque(N.m/rpm) 1550/1300
Displacement( ml ) 8900
Type of Fuel Diesel
Compression ratio (16.6±0.5):1
Cab D310-S1 Single berth
Capacity 3 persons
Gearbox Type Fast 9gears
Max. output torque( N.m ) 1200
Clutch Φ430mm diaphragm spring clutch
Frame                           Height×Width× Thickness(mm) 300×90×(8+8)
Frame width 940 (front ), Frame width 800 ( rear )
No of Spring leaves 9/10
Tyre Size 11.00R20
Air conditioner A/C
Dimensions Overall dimension (mm) 8200×2500×3200
Inner dimension (mm) 5400×2300×1500
Wheel base (mm) 3800+1350
Front/Rear tread(mm) 2027/1820
App./Dep. angel (°) 30/30
Performance Max. speed( km/h) 75
Max. gradeability(%) 30
Min. turning diameter( m ) 16.5
Mass Payload(Kg) 33,800
Curb weight(Kg) 14,300
G.V.W.(Kg) 48,100
