- Size: 11622,11222*2495*3520,3850
- Place of Origin: Guangxi Province, China
- Brand Name: DONGFENG LIUZHOU MOTOR
- Model Number: LZ3310QELAT
- Weight: 31000.000 kg

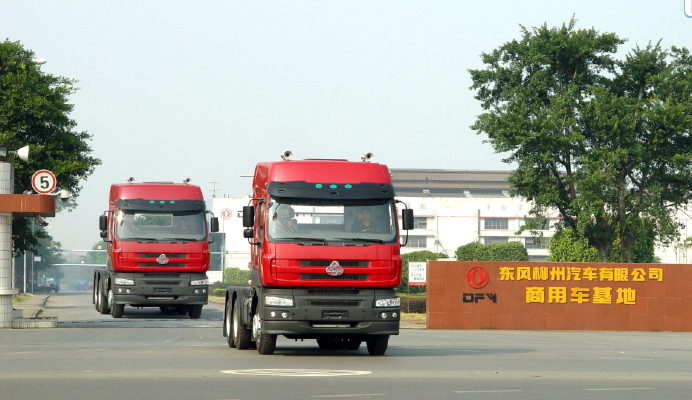

Company Introduction
As a limited liability company held by Dongfeng Motor Group Co., Ltd. and Liuzhou Industrial Shareholding Co., Ltd., Dongfeng Liuzhou Motor Co., Ltd. is a China’s first-grade big enterprise, ISO9001 quality system attestation enterprise and 3C attestation enterprise. With more than 3000 employees, total assets value of 2.38 billion yuan and land area of 878,000 m2, it has formed an annual production capacity of 60,000 commercial vehicles and 50,000 passenger vehicles, and has four major brands, i.e. “Dongfeng Chenglong”, “Dongfeng Balong”, “Dongfeng Longka”, and “Dongfeng Fengxing”.
Advantages
1. Small order can be accepted.
2. 1 year quality guarantee term.
3. CCC, ISO9001 certifications.
4. Be designed according to your requirement.
5. More than four years dump truck manufacture experience.
6. We accept 100% inspection, and welcome to our factory at any time.

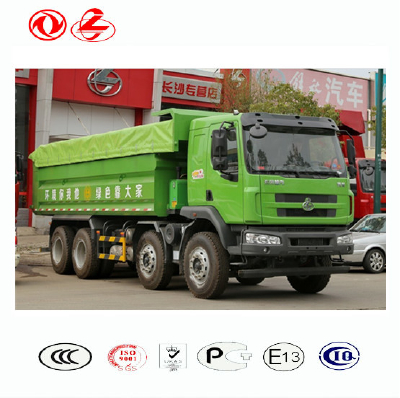

Dongfeng Chenglong 8X4 12 Wheel 40 Ton Dump Truck
ITEM | UNIT | REMARKS | |||
Weight parameter | GVW | kg | 31000 | ||
Curb weight | 14770 | ||||
Rated weight | 16100,16035 | ||||
Axle load | 6500/6500/18000 | ||||
Max Loading capacity | 40000 | ||||
Di mension parameter | Overall d i mensions(L*W*H) | mm | 11622,11222*2495*3520,3850 | ||
Box d i mension(L*W*H) | 8 0 00,8200*2300*1000 | ||||
Carriage thickness | Floor:8-12 Side:6-10 | ||||
Wheelbase | 1800+3500+1350,1800+3900+1350, 1800+4260+1350,1800+4660+1350 | ||||
F/R suspension | 6500/6500/18000 | ||||
F/R tyre width | 2045/2045,2010/2010 , 1860/1860,1874/1874 | ||||
Performance parameter | Max speed | km/h | 75 | ||
Approch angle | 30/15,20/15,30/19,20/19 | ||||
The rate of loading | 1.09 | ||||
Carriage lifting | ventral lifting | ||||
Vehicle parameter | Cab | one cabin (3seater) | |||
Engine | Type | ISLe340 40 / ISLe375 40 /WP10.336E41/ WP12.375E40 /YC6L330-42 /YC6MK340-42 | |||
